MFSS Multi-channel synchronous laser vibrometry system

A cost-effective solution for transient non-contact multi-point vibration measurement

Product description:

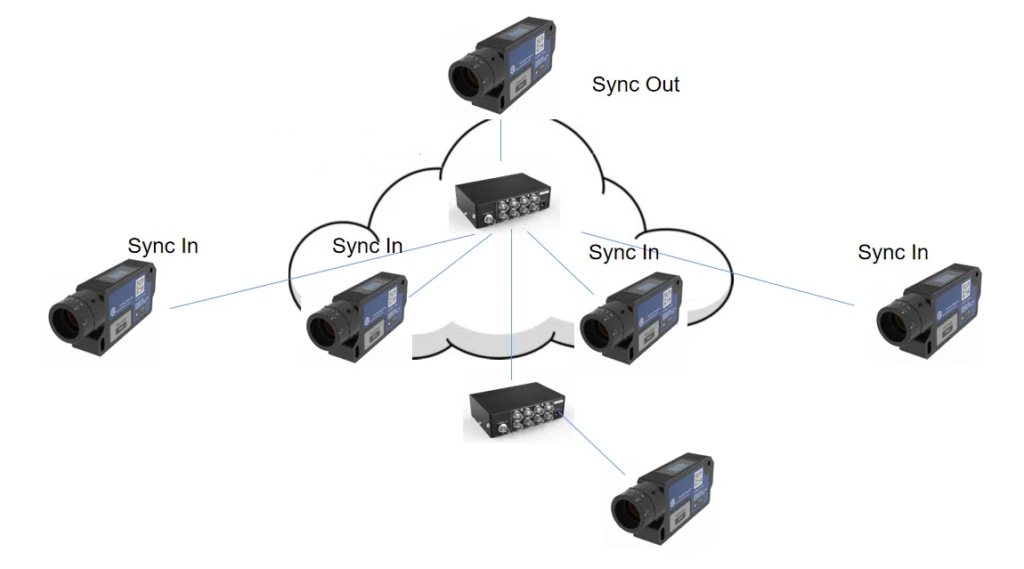

MFSS Multi – channel Synchronous Measurement System is a device specifically designed for the high – precision multi – channel synchronous measurement of OmniSensing sensors. This system can connect various vibration displacement sensors of OmniSensing, and can simultaneously connect up to 100 high – precision laser Doppler sensors or interferometers of OmniSensing, supporting the synchronous data collection of vibration displacement, vibration velocity, vibration acceleration, or absolute distance.
MFSS  has efficient data management and processing control functions, supporting continuous long – term measurement of multi – channel sensors, as well as externally triggered measurement and synchronous measurement, making data collection more flexible and efficient. Powerful data storage capability ensures long – term data accumulation and analysis. MFSS supports the decentralized measurement arrangement of sensors, able to achieve long – distance testing up to 15 meters between the sensor and the host. Such a design facilitates synchronous measurement of large – structure objects, ensuring multi – channel synchronous collection for large – scale targets.
The client – side control software we provide supports Windows or Linux operating systems, and users can choose the appropriate version according to their own needs. The software has a user – friendly interface and simple operation, and can also customize user analysis functions and database management functions to meet the personalized needs of different industries and customers.

Product Features:

  • Industrial – grade control unit;
  • Can connect 100 – channel sensors for synchronous measurement;
  • Suitable for multi – point real – time modal measurement;
  • Suitable for transfer function measurement;
  • Supports continuous long – term measurement;
  • Supports internal and external trigger synchronous measurement;
  • Includes data storage capability;
  • Includes client – side control software;
  • Customizable user analysis functions.




Specifications:



Function ItemFunctional Sub – categoryDescription
Model MFSS
 Maximum number of connected channels100
 Sensor connection range (m)<15
 Synchronization accuracy (μm)<0.2
Measurement CapabilitySingle – channel measurement contentdisplacement, velocity, acceleration, absolute distance
 Multi – channel measurement contentFRF, modal data, physical dimensions
 Measurement bandwidth (Hz)DC – 2.5M/25M（depend on the channels numbers）
 Maximum test distance (m)40
 Maximum displacement measurement accuracy (nm)1
 Maximum distance measurement accuracy (pm)1
Software FunctionOperating systemWindows
 Measurement modecontinuous mode, trigger mode
 Signal analysis functionconfigurable window function, configurable digital oscilloscope (low – pass, high – pass, band – pass) median filter
Physical InterfaceTouch screen (inch)8.9
 100Base – T12
 USB 3.06
 VideoHDMI
 Audio3.5mm wired headphone jack
Power Supply MethodVoltage (V)AC 110/220


Options:

ModelCategoryDescription
MotionGo seriesGeneral – purpose laser vibrometer0 – 40m, high – performance, with indicator light displacement, velocity, acceleration, absolute distance
MV – H/G seriesMiniature Doppler vibration displacement sensor0 – 20m, high – performance industrial – grade sensor
MVX seriesMiniature laser interferometer sensor0.1-1m, miniature sensor
Motion – Go 3DMiniature Doppler vibration displacement sensor10-40cm, in – plane and out – plane vector vibration measurement
MVF Optical Fiber laser displacement sensor0 – 50m, high – performance displacement test sensor

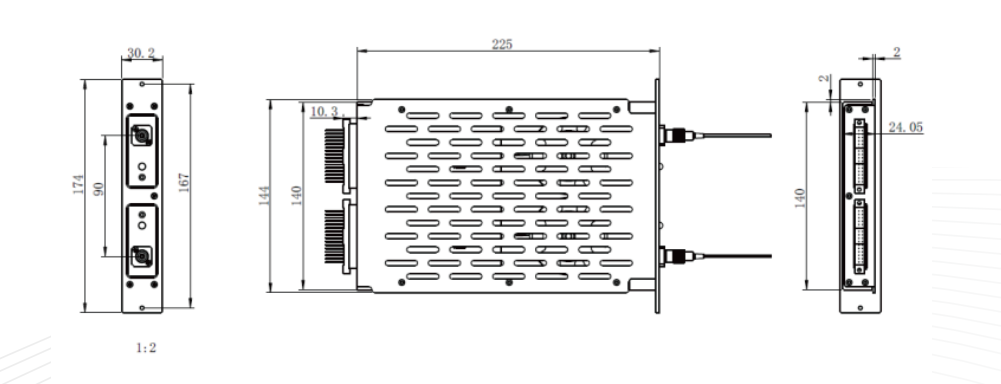

Outline and dimensions:

Download PDF More Application
